WebODM

A web interface for OpenDroneMap.

This is currently a work in progress! See the Roadmap below.

Getting Started

The quickest way to get started is by using Docker.

• From the Docker Quickstart Terminal (Windows / OSX) or from the command line (Linux) type:

git clone https://github.com/OpenDroneMap/WebODM
cd WebODM
docker-compose up

• If you're on Windows/OSX, find the IP of your Docker machine by running this command from your Docker Quickstart Terminal:

docker-machine ip

Linux users can connect to 127.0.0.1.

• Open a Web Browser to http://<yourDockerMachineIp>:8000
• Log in with the default credentials: "admin:admin"

Run it natively

If you want to run WebODM natively, you will need to install:

• PostgreSQL (>= 9.5)
• Python 2.7

Then these steps should be sufficient to get you up and running:

git clone https://github.com/OpenDroneMap/WebODM

Create a WebODM\webodm\local_settings.py file containing:

DATABASES = {
    'default': {
        'ENGINE': 'django.db.backends.postgresql',
        'NAME': 'webodm_dev',
        'USER': 'postgres',
        'PASSWORD': 'postgres',
        'HOST': 'localhost',
        'PORT': '5432',
    }
}

Then:

pip install -r requirements.txt
pip install --upgrade git+git://github.com/Yelp/swagger_spec_validator
chmod +x start.sh && ./start.sh

Roadmap

• User Registration / Authentication

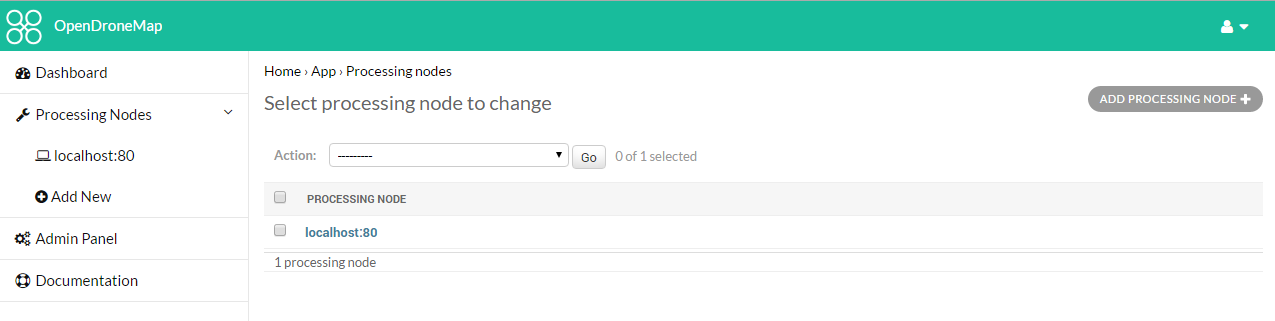

• UI mockup
• Task Processing
• Model display (using Cesium/Leaflet) for both 2D and 3D outputs.
• Cluster management and setup.
• Mission Planner
• API
• Documentation
• Unit Testing

Terminology

• Project: A collection of tasks (successfully processed, failed, waiting to be executed, etc.)
• Task: A collection of input aerial images and an optional set of output results derived from the images, including an orthophoto, a georeferenced model and a textured model. A Task's output is processed by OpenDroneMap.
• ProcessingNode: An instance usually running on a separate VM, or on a separate machine which accepts aerial images, runs OpenDroneMap and returns the processed results (orthophoto, georeferenced model, etc.). Each node communicates with WebODM via a lightweight API such as node-OpenDroneMap. WebODM manages the distribution of Task to different ProcessingNode instances.
• ImageUpload: aerial images.
• Mission: A flight path and other information (overlap %, angle, ...) associated with a particular Task.

Work in progress

We will add more information to this document soon.
