micropython-micro-gui

This is a lightweight, portable, MicroPython GUI library for displays with drivers subclassed from framebuf. It allows input via pushbuttons or via a switch joystick. Written in Python it runs under a standard MicroPython firmware build.

It is larger and more complex than nano-gui owing to the support for input. It enables switching between screens and launching modal windows. In addition to nano-gui widgets it supports listboxes, dropdown lists, various means of entering or displaying floating point values, and other widgets.

It is compatible with all display drivers for nano-gui so is portable to a wide range of displays. It is also portable between hosts.

Image Raspberry Pico/ILI9341.

Image TTGO T-Display. Add a joystick switch and an SIL resistor for a simple, inexpensive, WiFi capable system.

Rationale

Touch GUI's have many advantages, however they have drawbacks, principally cost and the need for calibration (although the official LCD160cr is factory calibrated). Another problem is that there are various types of touch controller, magnifying the difficulty of writing a portable GUI.

Pushbutton input works well and yields astonishingly low cost solutions. A network-connected board with a 135x240 color display can be built for under £20 ($20?) using the TTGO T-Display. The test board shown above has a 320x240 display from eBay with a Pi Pico and has a component cost of well below £20.

The following are similar GUI repos with differing objectives.

  • nano-gui Extremely low RAM usage but display-only with no provision for input.
  • LCD160cr Touch GUI for the official display.
  • RA8875 Touch GUI for displays with RA8875 controller. Supports large displays, e.g. from Adafruit.
  • SSD1963 Touch GUI for displays based on SSD1963 and XPT2046. High performance on large displays due to the parallel interface. Specific to STM hosts.

LVGL is a pretty icon-based GUI library. It is written in C with MicroPython bindings; consequently it requires the build system for your target and a C device driver (unless you can acquire a suitable binary).

Project status

Code has been tested on ESP32, Pi Pico and Pyboard. The API shuld be stable. Code is new and issues are likely: please report any found. The project is under development so check for updates. I also plan to upgrade the performance of some display drivers.

0. Contents

  1. Basic concepts Including installation and test.
    1.1 Coordinates The GUI's coordinate system.
    1.2 Screen Window and Widget objects Basic GUI classes.
    1.3 Fonts
    1.4 Navigation How the GUI navigates between widgets.
    1.5 Hardware definition How to configure your hardware.
    1.6 Quick hardware check Testing the hardware config.
    1.7 Installation Installing the library.
    1.8 Performance and hardware notes
    1.9 Firmware and dependencies
    1.10 Supported hosts and displays
    1.11 Files Discussion of the files in the library.
         1.11.1 Demos Simple demos showing coding techniques.
         1.11.2 Test scripts GUI tests, some needing larger displays
    1.12 Floating Point Widgets How to input floating point data.
  2. Usage Application design.
    2.1 Program structure and operation A simple demo of navigation and use.
    2.2 Callbacks
    2.3 Colors
         2.3.1 Monochrome displays
  3. The ssd and display objects
  4. Screen class Full screen window.
    4.1 Class methods
    4.2 Constructor
    4.3 Callback methods Methods which run in response to events.
    4.4 Method Optional interface to uasyncio code.
  5. Window class
    5.1 Constructor
    5.2 Class method
  6. Label widget Single line text display.

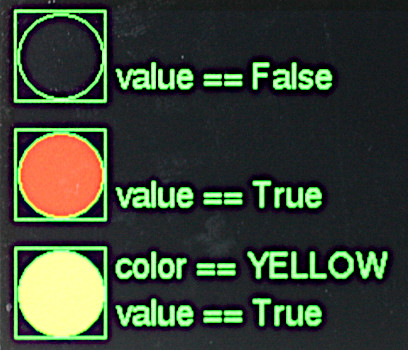

  7. LED widget Display Boolean values.
  8. Checkbox widget Enter Boolean values.
  9. Button and CloseButton widgets Pushbutton emulation.
  10. ButtonList object Pushbuttons with multiple states.

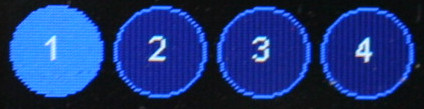

  11. RadioButtons object One-of-N pushbuttons.
  12. Listbox widget
  13. Dropdown widget Dropdown lists.
  14. DialogBox class Pop-up modal dialog boxes.
  15. Textbox widget Scrolling text display.
  16. Meter widget Display floats on an analog meter.
  17. Slider and HorizSlider widgets Linear potentiometer float data entry and display
  18. Scale widget High precision float entry and display.
  19. ScaleLog widget Wide dynamic range float entry and display.
  20. Dial widget Display multiple vectors.
  21. Knob widget Rotary potentiometer float entry.
  22. Graph plotting Widgets for Cartesian and polar graphs.
    22.1 Concepts
         22.1.1 Graph classes
         22.1.2 Curve classes
         22.1.3 Coordinates
    22.2 Graph classes
         22.2.1 Class CartesianGraph
         22.2.2 Class PolarGraph
    22.3 Curve classes
         22.3.1 Class Curve
         22.3.2 Class PolarCurve
    22.4 Class TSequence Plotting realtime, time sequential data.
    Appendix 1 Application design Tab order, button layout, use of graphics primitives

1. Basic concepts

Internally micro-gui uses uasyncio. It presents a conventional callback based interface; knowledge of uasyncio is not required for its use. Display refresh is handled automatically. As in nano-gui, widgets are drawn using graphics primitives rather than icons. This makes them efficiently scalable and minimises RAM usage compared to icon-based graphics. It also facilitates the provision of extra visual information. For example the color of all or part of a widget may be changed programmatically, for example to highlight an overrange condition.

1.1 Coordinates

These are defined as row and col values where row==0 and col==0 corresponds to the top left most pixel. Rows increase downwards and columns increase to the right. The graph plotting widget uses normal mathematical conventions within graphs.

Contents

1.2 Screen Window and Widget objects

A Screen is a window which occupies the entire display. A Screen can overlay another, replacing all its contents. When closed, the Screen below is re-displayed.

A Window is a subclass of Screen but is smaller, with size and location attributes. It can overlay part of an underlying Screen and is typically used for modal dialog boxes.

A Widget is an object capable of displaying data. Some are also capable of data input: such a widget is defined as active. A passive widget can only display data. An active widget can acquire focus. The widget with focus is able to respond to user input. See navigation. Widget objects have dimensions defined as height and width. The space requred by them exceeds these dimensions by two pixels all round. This is because micro-gui displays a white border to show which object currently has focus. Thus to place a Widget at the extreme top left, row and col values should be 2.

Contents

1.3 Fonts

Python font files are in the gui/fonts directory. The easiest way to conserve RAM is to freeze them which is highly recommended. In doing so the directory structure must be maintained.

To create alternatives, Python fonts may be generated from industry standard font files with font_to_py.py. The -x option for horizontal mapping must be specified. If fixed pitch rendering is required -f is also required. Supplied examples are:

  • arial10.py Variable pitch Arial. 10 pixels high.
  • arial35.py Arial 35 high.
  • arial_50.py Arial 50 high.
  • courier20.py Fixed pitch Courier, 20 high.
  • font6.py FreeSans 14 high.
  • font10.py FreeSans 17 high.
  • freesans20.py FreeSans 20 high.
Contents

1.4 Navigation

The GUI requires from 2 to 5 pushbuttons for control. These are:

  1. Next Move to the next widget.
  2. Select Operate the currently selected widget.
  3. Prev Move to the previous widget.
  4. Increase Move within the widget (i.e. adjust its value).
  5. Decrease Move within the widget.

Many widgets such as Pushbutton or Checkbox objects require only the Select button to operate: it is possible to design an interface with a subset of micro-gui widgets which requires only the first two buttons.

Widgets such as Listbox objects, dropdown lists (Dropdown), and those for floating point data entry require the Increase and Decrease buttons to select a data item or to adjust the linear value. This is discussed in Floating Point Widgets.

The currently selected Widget is identified by a white border: the focus moves between widgets via Next and Prev. Only active Widget instances (those that can accept input) can receive the focus. Widgets are defined as active or passive in the constructor, and this status cannot be changed. In some cases the state can be specified as a constructor arg, but other widgets have a predefined state. An active widget can be disabled and re-enabled at runtime. A disabled active widget is shown "greyed-out" and, until re-enabled, cannot accept the focus.

Contents

1.5 Hardware definition

A file hardware_setup.py must exist in the GUI root directory. This defines the connections to the display, the display driver, and pins used for the pushbuttons. Example files may be found in the setup_examples directory. Further examples (without pin definitions) are in this nano-gui directory.

The following is a typical example for a Raspberry Pi Pico driving an ILI9341 display:

from machine import Pin, SPI, freq
import gc

from drivers.ili93xx.ili9341 import ILI9341 as SSD
freq(250_000_000)  # RP2 overclock
# Create and export an SSD instance
pdc = Pin(8, Pin.OUT, value=0)  # Arbitrary pins
prst = Pin(9, Pin.OUT, value=1)
pcs = Pin(10, Pin.OUT, value=1)
spi = SPI(0, baudrate=30_000_000)
gc.collect()  # Precaution before instantiating framebuf
ssd = SSD(spi, pcs, pdc, prst, usd=True)

from gui.core.ugui import Display, setup
# Create and export a Display instance
# Define control buttons
nxt = Pin(19, Pin.IN, Pin.PULL_UP)  # Move to next control
sel = Pin(16, Pin.IN, Pin.PULL_UP)  # Operate current control
prev = Pin(18, Pin.IN, Pin.PULL_UP)  # Move to previous control
increase = Pin(20, Pin.IN, Pin.PULL_UP)  # Increase control's value
decrease = Pin(17, Pin.IN, Pin.PULL_UP)  # Decrease control's value
display = Display(ssd, nxt, sel, prev, increase, decrease)

Display drivers are documented here.

Contents

1.6 Quick hardware check

The following may be pasted at the REPL to verify correct connection to the display. It also confirms that hardware_setup.py is specifying a suitable display driver.

from hardware_setup import ssd  # Create a display instance
from gui.core.colors import *
ssd.fill(0)
ssd.line(0, 0, ssd.width - 1, ssd.height - 1, GREEN)  # Green diagonal corner-to-corner
ssd.rect(0, 0, 15, 15, RED)  # Red square at top left
ssd.rect(ssd.width -15, ssd.height -15, 15, 15, BLUE)  # Blue square at bottom right
ssd.show()
Contents

1.7 Installation

The easy way to start is to use mpremote which allows a directory on your PC to be mounted on the host. In this way the filesystem on the host is left unchanged. This is at some cost in loading speed, especially on ESP32. If adopting this approach, you will need to ensure the hardware_setup.py file on the PC matches your hardware. Install mpremote with

$ pip3 install mpremote

Clone the repo to your PC with

$ git clone https://github.com/peterhinch/micropython-micro-gui
$ cd micropython-micro-gui

Edit hardware_setup.py then run:

$ mpremote mount .

This should provide a REPL. Run the minimal demo:

>>> import gui.demos.simple

If installing to the device's filesystem it is necessary to maintain the directory structure. The drivers and gui directories (with subdirectories and contents) should be copied, along with hardware_setup.py. Filesystem space may be conserved by copying only the display driver in use. Unused widgets, fonts and demos can also be trimmed, but the directory structure must be kept.

There is scope for speeding loading and saving RAM by using frozen bytecode. Once again, directory structure must be maintained.

Contents

1.8 Performance and hardware notes

The largest supported display is a 320x240 ILI9341 unit. On a Pi Pico with no use of frozen bytecode the demos run with about 74K of free RAM. Substantial improvements could be achieved using frozen bytecode.

Snappy navigation benefits from several approaches:

  1. Clocking the SPI bus as fast as possible.
  2. Clocking the host fast (machine.freq).
  3. Device driver support for uasyncio. Currently this exists on ILI9341 and ST7789 (e.g. TTGO T-Display). I intend to extend this to other drivers.

The consequence of inadequate speed is that brief button presses can be missed. This is because display update blocks for tens of milliseconds, during which time the pushbuttons are not polled. Blocking is much reduced by item 3 above.

On the TTGO T-Display I found it necessary to use physical pullup resistors on the pushbutton GPIO lines. According to the ESP32 gurus pins 36-39 do not have pullup support.

On a Pyboard 1.1 with 320x240 ili9341 display it was necessary to use frozen bytecode: in this configuration running the "various" demo there was 29K of free RAM. Note that, at 37.5KiB, this display is the worst-case in terms of RAM usage. A smaller display or a Pyboard D would offer more headroom.

Contents

1.9 Firmware and dependencies

Firmware should be V1.15 or later. The source tree includes all dependencies. These are listed to enable users to check for newer versions:

  • writer.py Provides text rendering of Python font files.
  • SSD1306 driver. A copy of the official driver for OLED displays using the SSD1306 chip is provided. The link is to the official file.
  • Synchronisation primitives. The link is to my uasyncio support repo.
  • PCD8544/Nokia 5110. Displays based on the Nokia 5110 (PCD8544 chip) require this driver. It is not provided in this repo. The link is to its source.
Contents

1.10 Supported hosts and displays

Development was done using a Raspberry Pi Pico connected to a cheap ILI9341 320x240 display. I have also tested a TTGO T-Display (an ESP32 host) and a Pyboard. Code is written with portability as an aim, but MicroPython configs vary between platforms and I can't guarantee that every widget will work on every platform. For example, some use the cmath module which may be absent on some builds.

Supported displays are as per the nano-gui list. In practice usage with ePaper displays is questionable because of their slow refresh times. I haven't tested these, or the Sharp displays.

Display drivers are documented here.

Contents

1.11 Files

Display drivers may be found in the drivers directory. These are copies of those in nano-gui, included for convenience.

The system is organised as a Python package with the root being gui. Core files in gui/core are:

  • colors.py Constants including colors and shapes.
  • ugui.py The main GUI code.
  • writer.py Supports the Writer and CWriter classes.
  • framebuf_utils.mpy Accelerator for the CWriter class. This optional file is compiled for STM hardware. It is specific to Pyboards (1.x and D) and will be ignored on other ports. Details may be found here.

The gui/primitives directory contains the following files:

  • switch.py Interface to physical pushbuttons.
  • delay_ms.py A software triggerable timer.

The gui/demos directory contains a variety of demos and tests described below.

1.11.1 Demos

Demos are run by issuing (for example):

>>> import gui.demos.simple

If shut down cleanly with the "close" button a demo can be re-run with (e.g.):

gui.demos.simple.test()

Before running a different demo the host should be reset (ctrl-d) to clear RAM.

These will run on screens of 128x128 pixels or above. The initial ones are minimal and aim to demonstrate a single technique.

  • simple.py Minimal demo discussed below. Button presses print to REPL.
  • checkbox.py A Checkbox controlling an LED.
  • slider.py A Slider whose color varies with its value.
  • slider_label.py A Slider updating a Label. Good for trying precision mode.
  • linked_sliders.py One Slider updating two others, and a coding "wrinkle" required for doing this.
  • dropdown.py A dropdown list updates a Label.
  • dialog.py DialogBox demo. Illustrates the screen change mechanism.
  • screen_change.py A Pushbutton causing a screen change using a re-usable "forward" button.
  • primitives.py Use of graphics primitives.
  • aclock.py An analog clock using the Dial vector display. Also shows screen layout using widget metrics. Has a simple uasyncio task.
  • tbox.py Text boxes and user-controlled scrolling.

1.11.2 Test scripts

These more complex demos are run in the same way by issuing (for example):

>>> import gui.demos.active

Some of these require larger screens. Required sizes are specified as (height x width).

  • active.py Demonstrates active controls providing floating point input (240x320).
  • plot.py Graph plotting (128x200).
  • screens.py Listbox, dropdown and dialog boxes (128x240).
  • various.py Assorted widgets including the different types of pushbutton (240x320).
  • vtest.py Clock and compass styles of vector display (240x320).
Contents

1.12 Floating Point Widgets

The challenge is to devise a way, with just two pushbuttons, of adjusting a data value which may have an extremely large dynamic range. This is the ratio of the data value's total range to the smallest adjustment that can be made. The mechanism currently implemented enables a precision of 0.05%.

Floating point widgets respond to a brief press of the increase or decrease buttons by adjusting the value by a small amount. A continued press causes the value to be repeatedly adjusted, with the amount of the adjustment increasing with time. This enables the entire range of the control to be accessed quickly, while allowing small changes of 0.5%. This works well. In many cases the level of precision will suffice.

Fine adjustments may be achieved by pressing the select button for at least one second. The GUI will respond by changing the border color from white (i.e. has focus) to yellow. In this mode a brief press of increase or decrease will have a reduced effect (0.05%). The fine mode may be cancelled by pressing select or by moving the focus to another control.

In the case of slider and knob controls the precision of fine mode exceeds that of the visual appearance of the widget: fine changes can be too small to see. Options are to use the Scale widget or to have a linked Label showing the widget's exact value.

The callback runs whenever the widget's value changes. This causes the callback to run repeatedly while the user adjusts the widget. This is required if there is a linked Label to update.

Contents

2. Usage

2.1 Program structure and operation

The following is a minimal script (found in gui.demos.simple.py) which will run on a minimal system with a small display and two pushbuttons. It provides two Button widgets with "Yes" and "No" legends.

It may be run by issuing at the REPL:

>>> import gui.demos.simple

Note that the import of hardware_setup.py is the first line of code. This is because the frame buffer is created here, with a need for a substantial block of contiguous RAM.

import hardware_setup  # Instantiate display, setup color LUT (if present)
from gui.core.ugui import Screen, ssd

from gui.widgets.label import Label
from gui.widgets.buttons import Button, CloseButton
from gui.core.writer import CWriter

# Font for CWriter
import gui.fonts.arial10 as arial10
from gui.core.colors import *


class BaseScreen(Screen):

    def __init__(self):

        def my_callback(button, arg):
            print('Button pressed', arg)

        super().__init__()
        wri = CWriter(ssd, arial10, GREEN, BLACK, verbose=False)

        col = 2
        row = 2
        Label(wri, row, col, 'Simple Demo')
        row = 20
        Button(wri, row, col, text='Yes', callback=my_callback, args=('Yes',))
        col += 60
        Button(wri, row, col, text='No', callback=my_callback, args=('No',))
        CloseButton(wri)  # Quit the application

def test():
    print('Testing micro-gui...')
    Screen.change(BaseScreen)

test()

Note how the Next pushbutton moves the focus between the two buttons and the "X" close button. The focus does not move to the "Simple Demo" widget because it is not active: a Label cannot accept user input. Pushing the Select pushbutton while the focus is on a Pushbutton causes the callback to run.

Applications start by performing Screen.change() to a user-defined Screen object. This must be subclassed from the GUI's Screen class. Note that Screen.change accepts a class name, not a class instance.

The user defined BaseScreen class constructor instantiates all widgets to be displayed and typically associates them with callback functions - which may be bound methods. Screens typically have a CloseButton widget. This is a special Pushbutton subclass which displays as an "X" at the top right corner of the physical display and closes the current screen, showing the one below. If used on the bottom level Screen (as above) it closes the application.

The wri instance of CWriter associates a widget with a font. Constructors for all widgets have three mandatory positional args. These are a CWriter instance followed by row and col. These args are followed by a number of optional keyword args. These have (hopefully) sensible defaults enabling you to get started easily.

Contents

2.2 Callbacks

The interface is event driven. Widgets may have optional callbacks which will be executed when a given event occurs. Events occur when a widget's properties are changed programmatically, and also (in the case of active widgets) in response to user input.

A callback function receives positional arguments. The first is a reference to the object raising the callback. Subsequent arguments are user defined, and are specified as a tuple or list of items. Callbacks and their argument lists are optional: a default null function and empty list are provided. Callbacks may optionally be written as bound methods. This facilitates communication between widgets.

When writing callbacks take care to ensure that the correct number of arguments are passed, bearing in mind the first arg described above. An incorrect argument count results in puzzling tracebacks which appear to implicate the GUI code. This is because it is the GUI which actually executes the callbacks.

Contents

2.3 Colors

The file gui/core/colors.py defines a set of color constants which may be used with any display driver. This section describes how to change these or to create additional colors. Most of the color display drivers define colors as 8-bit or larger values. For the larger displays 4-bit drivers are provided with the aim of conserving RAM.

In the 4-bit case colors are assigned to a lookup table (LUT) with 16 entries. The frame buffer stores 4-bit color values, which are converted to the correct color depth for the hardware when the display is refreshed. Of the 16 possible colors 13 are assigned in gui/core/colors.py, leaving color numbers 12, 13 and 14 free.

The following code is portable between displays and creates a user defined color PALE_YELLOW.

from gui.core.colors import *  # Imports the create_color function
PALE_YELLOW = create_color(12, 150, 150, 0)  # index, r, g, b

If a 4-bit driver is in use, the color rgb(150, 150, 0) will be assigned to "spare" color number 12. Any color number in range 0 <= n <= 15 may be used, implying that predefined colors may be reassigned. It is recommended that BLACK (0) and WHITE (15) are not changed; GREY (6) and YELLOW (5) are also GUI defaults. If an 8-bit or larger driver is in use, the first index arg is ignored and there is no restriction on the number of colors that may be created.

Regardless of the display driver the PALE_YELLOW variable may be used to refer to the color. An example of custom color definition may be found in this nano-gui demo.

Contents

2.3.1 Monochrome displays

Most widgets work on monochrome displays if color settings are left at default values. If a color is specified, drivers in this repo will convert it to black or white depending on its level of saturation. A low level will produce the background color, a high level the foreground.

At the bit level 1 represents the foreground. This is white on an emitting display such as an OLED. On a Sharp display it indicates reflection.

There is an issue regarding ePaper displays discussed here. I don't consider ePaper displays as suitable for I/O because of their slow refresh time.

Contents

3. The ssd and display objects

The following code, issued as the first executable lines of an application, initialises the display.

import hardware_setup  # Create a display instance
from gui.core.ugui import Screen, ssd, display

It creates singleton instances of SSD and Display classes. Normal GUI applications only need to import ssd. This refererence to the display driver is used to initialise Writer objects. Bound variables ssd.height and ssd.width may be read to determine the dimensions of the display hardware.

The display object is only needed in applications which use graphics primitives to write directly to the screen. See Appendix 1.

Contents

4. Screen class

The Screen class presents a full-screen canvas onto which displayable objects are rendered. Before instantiating widgets a Screen instance must be created. This will be current until another is instantiated. When a widget is instantiated it is associated with the current screen.

All applications require the creation of at least one user screen. This is done by subclassing the Screen class. Widgets are instantiated in the constructor. Widgets may be assigned to bound variable: this facilitates communication between them.

Contents

4.1 Class methods

In normal use the following methods only are required:

  • change(cls, cls_new_screen, *, forward=True, args=[], kwargs={}) Change screen, refreshing the display. Mandatory positional argument: the new screen class name. This must be a class subclassed from Screen. The class will be instantiated and displayed. Optional keyword arguments args, kwargs enable passing positional and keyword arguments to the constructor of the new, user defined, screen.
  • back(cls) Restore previous screen.

These are uncommon:__

  • shutdown(cls) Clear the screen and shut down the GUI. Normally done by a CloseButton instance.
  • show(cls, force). This causes the screen to be redrawn. If force is False unchanged widgets are not refreshed. If True, all visible widgets are re-drawn. Explicit calls to this should never be needed.

See demos/plot.py for an example of multi-screen design.

Contents

4.2 Constructor

This takes no arguments.

4.3 Callback methods

These are null functions which may be redefined in user subclasses.

  • on_open(self) Called when a screen is instantiated but prior to display.
  • after_open(self) Called after a screen has been displayed.
  • on_hide(self) Called when a screen ceases to be current.

See demos/plot.py for examples of usage of after_open.

4.4 Method

  • reg_task(self, task, on_change=False) The first arg may be a Task instance or a coroutine.

This is a convenience method which provides for the automatic cancellation of tasks. If a screen runs independent coros it can opt to register these. If the screen is overlaid by another, tasks registered with on_change True are cancelled. If the screen is closed, all tasks registered to it are cancelled regardless of the state of on_change. On shudown, any tasks registered to the base screen are cancelled.

For finer control applications can ignore this method and handle cancellation explicitly in code.

Contents

5. Window class

This is a Screen subclass providing for modal windows. As such it has positional and dimension information. Usage consists of writing a user class subclassed from Window. Example code is in demos/screens.py.

5.1 Constructor

This takes the following positional args:

  • row
  • col
  • height
  • width

Followed by keyword-only args

  • draw_border=True
  • bgcolor=None Background color, default black.
  • fgcolor=None Foreground color, default white.

5.2 Class method

  • value(cls, val=None) The val arg can be any Python type. It allows widgets on a Window to store information in a way which can be accessed from the calling screen. This typically occurs after the window has closed and no longer exists as an instance.

Another approach, demonstrated in demos/screens.py, is to pass one or more callbacks to the user window constructor args. These may be called by widgets to send data to the calling screen. Note that widgets on the screen below will not be updated until the window has closed.

Contents

6. Label widget

from gui.widgets.label import Label


Various styles of Label.

The purpose of a Label instance is to display text at a specific screen location.

Text can be static or dynamic. In the case of dynamic text the background is cleared to ensure that short strings cleanly replace longer ones.

Labels can be displayed with an optional single pixel border.

Colors are handled flexibly. By default the colors used are those of the Writer instance, however they can be changed dynamically; this might be used to warn of overrange or underrange values. The color15.py demo illustrates this.

Constructor args:

  1. writer The Writer instance (font and screen) to use.
  2. row Location on screen.
  3. col
  4. text If a string is passed it is displayed: typically used for static text. If an integer is passed it is interpreted as the maximum text length in pixels; typically obtained from writer.stringlen('-99.99'). Nothing is dsplayed until .value() is called. Intended for dynamic text fields.
  5. invert=False Display in inverted or normal style.
  6. fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  7. bgcolor=None Background color of object. If None the Writer background default is used.
  8. bdcolor=False Color of border. If False no border will be drawn. If None the fgcolor will be used, otherwise a color may be passed. If a color is available, a border line will be drawn around the control.

The constructor displays the string at the required location.

Method:
value Redraws the label. This takes the following args:

  • text=None The text to display. If None displays last value.
  • invert=False If true, show inverse text.
  • fgcolor=None Foreground color: if None the Writer default is used.
  • bgcolor=None Background color, as per foreground.
  • bdcolor=None Border color. As per above except that if False is passed, no border is displayed. This clears a previously drawn border.
    Returns the current text string.

If the value method is called with a text string too long for the Label a ValueError will be thrown. The width specified to the constructor should be sufficient for all possible values.

If constructing a label would cause it to extend beyond the screen boundary a warning is printed at the console. The label may appear at an unexpected place. The following is a complete "Hello world" script.

from hardware_setup import ssd  # Create a display instance
from gui.core.ugui import Screen
from gui.core.writer import CWriter
from gui.core.colors import *

from gui.widgets.label import Label
from gui.widgets.buttons import CloseButton
import gui.fonts.freesans20 as freesans20


class BaseScreen(Screen):

    def __init__(self):
        super().__init__()
        wri = CWriter(ssd, freesans20, GREEN, BLACK, verbose=False)
        Label(wri, 2, 2, 'Hello world!')
        CloseButton(wri)

Screen.change(BaseScreen)
Contents

7. LED widget

from gui.widgets.led import LED


This is a virtual LED whose color may be altered dynamically. An LED may be defined with a color and turned on or off by setting .value to a boolean. For more flexibility the .color method may be use to set it to any color.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Keyword only args:

  • height=12 Height of LED.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control. shown in the foreground color. If a color is passed, it is used.
  • label=None A text string will cause a Label to be drawn below the LED. An integer will create a Label of that width for later use.

Methods:

  1. color arg c=None Change the LED color to c. If c is None the LED is turned off (rendered in the background color).
  2. text Updates the label if present (otherwise throws a ValueError). Args:
    • text=None The text to display. If None displays last value.
    • invert=False If true, show inverse text.
    • fgcolor=None Foreground color: if None the Writer default is used.
    • bgcolor=None Background color, as per foreground.
    • bdcolor=None Border color. As per above except that if False is passed, no border is displayed. This clears a previously drawn border.
Contents

8. Checkbox widget

from gui.widgets.checkbox import Checkbox

This provides for Boolean data entry and display. In the True state the control can show an 'X' or a filled block of any color depending on the fillcolor constructor arg.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Optional keyword only arguments:

  • height=30 Dimension of the square bounding box. Default 30 pixels.
  • fillcolor=None Fill color of checkbox when True. If None an 'X' will be drawn.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • callback=dolittle Callback function which will run when the value changes. The default is a null function.
  • args=[] A list/tuple of arguments for above callback.
  • value=False Initial value.
  • active=True By default user input is accepted.

Methods:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value Optional Boolean argument val. If the provided value does not correspond to the control's current value, updates it; the checkbox is re-drawn and the callback executed. Always returns the control's value.
Contents

9. Button and CloseButton widgets

from gui.core.colors import *  # Colors and shapes
from gui.widgets.buttons import Button


In this image Button "a" has the focus. Pressing the physical select button will press the virtual Button.

This emulates a pushbutton, with a callback being executed each time the button is pressed. Physically this consists of pressing the select button when the Button instance has focus. Buttons may be any one of three shapes: CIRCLE, RECTANGLE or CLIPPED_RECT.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Optional keyword only arguments:

  • shape=RECTANGLE Must be CIRCLE, RECTANGLE or CLIPPED_RECT.
  • height=20 Height of the bounding box.
  • width=50 Width of the bounding box.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • textcolor=None Text color. Defaults to fgcolor.
  • litcolor=None If provided the button will display this color for one second after being pressed.
  • text='' Shown in centre of button.
  • callback=dolittle Callback function which runs when button is pressed.
  • args=() A list/tuple of arguments for the above callback.
  • onrelease=False If True the callback will occur when the select pushbutton is released otherwise it will occur when pressed.

Method:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.

Class variable:

  • lit_time=1 Period in seconds the litcolor is displayed.

CloseButton

This example has focus, as shown by white border.

This Button subclass is a special case of a Button. Its constructor takes a single arg, being a Writer instance. It produces a red "X" button at the top right hand corner of the current Screen. Operating it causes the screen to close, with the screen below being revealed. On the bottom level screen, a CloseButton will shut down the application.

Constructor mandatory positional arg:

  • writer

Optional keyword only arguments:

  • width=0 By default dimensions are calculated from font size. The button is is square. Optionally width may be specified.
  • callback=dolittle Optional callback, not normally required.
  • args=() Args for above.
  • bgcolor=RED
Contents

10. ButtonList object

from gui.core.colors import *  # Colors and shapes
from gui.widgets.buttons import Button, ButtonList

A ButtonList groups a number of buttons together to implement a button which changes state each time it is pressed. For example it might toggle between a green Start button and a red Stop button. The buttons are defined and added in turn to the ButtonList object. Typically they will be the same size, shape and location but will differ in color and/or text. At any time just one of the buttons will be visible, initially the first to be added to the object.

Buttons in a ButtonList should not have callbacks. The ButtonList has its own user supplied callback which runs each time the object is pressed. However each button can have its own list of args. Callback arguments comprise the currently visible button followed by its arguments.

Constructor argument:

  • callback=dolittle The callback function. Default does nothing.

Methods:

  • add_button Adds a button to the ButtonList. Arguments: as per the Button constructor. Returns the button object.
  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value Optional args button=None, new_cb=False. The button arg, if provided, should be a button in the set. If supplied and the button is not active the currency changes to the supplied button, which is displayed. By default the callback of the previous button is run, otherwise the callback of the newly displayed button.

Always returns the active button.

Counter intuitively, running the callback of the previous button is normal behaviour. Consider a ButtonList consisting of ON and OFF buttons. If ON is visible this implies that the machine under control is off. Pressing select causes the ON callback to run, starting the machine. The new button displayed now reads OFF.

Typical usage is as follows:

def callback(button, arg):
    print(arg)

table = [
     {'fgcolor' : GREEN, 'shape' : CLIPPED_RECT, 'text' : 'Start', 'args' : ['Live']},
     {'fgcolor' : RED, 'shape' : CLIPPED_RECT, 'text' : 'Stop', 'args' : ['Die']},
]
bl = ButtonList(callback)
for t in table:  # Buttons overlay each other at same location
    bl.add_button(wri, 10, 10, textcolor = BLACK, **t)
Contents

11. RadioButtons object

from gui.core.colors import *  # Colors and shapes
from gui.widgets.buttons import Button, RadioButtons


This object groups a set of buttons at different locations. When a button is pressed, it becomes highlighted and remains so until another button in the set is pressed. A callback runs each time the current button is changed.

Constructor positional arguments:

  • highlight Color to use for the highlighted button. Mandatory.
  • callback Callback when a new button is pressed. Default does nothing.
  • selected Index of initial button to be highlighted. Default 0.

Methods:

  • add_button Adds a button. Arguments: as per the Button constructor. Returns the Button instance.
  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value Optional argument: a button in the set. If supplied, and the button is not currently active, the supplied button receives the focus and its callback is run. Always returns the currently active button.

Typical usage:

def callback(button, arg):
    print(arg)

table = [
    {'text' : '1', 'args' : ['1']},
    {'text' : '2', 'args' : ['2']},
    {'text' : '3', 'args' : ['3']},
    {'text' : '4', 'args' : ['4']},
]
col = 0
rb = RadioButtons(callback, BLUE) # color of selected button
for t in table:
    rb.add_button(wri, 10, col, textcolor = WHITE,
                  fgcolor = LIGHTBLUE, height = 40, **t)
    col += 60 # Horizontal row of buttons
Contents

12. Listbox widget

from gui.widgets.listbox import Listbox


A listbox with the second item highlighted. Pressing the physical select button will cause the callback to run.

A Listbox is an active widget. Its height is determined by the number of entries in it and the font in use. Scrolling is not supported. When the widget has focus the currently selected element may be changed using increase and decrease buttons. On pressing select a callback runs.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Mandatory keyword only argument:

  • elements A list or tuple of strings to display. Must have at least one entry.

Optional keyword only arguments:

  • width=None Control width in pixels. By default this is calculated to accommodate all elements.
  • value=0 Index of currently selected list item.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • fontcolor=None Text color. Defaults to system text color.
  • select_color=DARKBLUE Background color for selected item in list.
  • callback=dolittle Callback function which runs when select is pressed.
  • args=[] A list/tuple of arguments for above callback.
  • also=0 Options are Listbox.ON_MOVE or Listbox.ON_LEAVE. By default the callback runs only when the select button is pressed. The ON_LEAVE value causes it also to run when the focus moves from the control if the currently selected element has changed. The ON_MOVE arg causes the callback to run every time the highlighted element is changed.

Methods:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value Argument val=None. If a provided argument is a valid index for the list, that entry becomes current and the callback is executed. Always returns the index of the currently active entry.
  • textvalue Argument text=None. If a string argument is provided and is in the control's list, that item becomes current. Normally returns the current string. If a provided arg did not match any list item, the control's state is not changed and None is returned.

The callback's first argument is the listbox instance followed by any args specified to the constructor. The currently selected item may be retrieved by means of the instance's value or textvalue methods.

Contents

13. Dropdown widget

from gui.widgets.dropdown import Dropdown


Closed dropdown list.


Open dropdown list. When closed, hidden items below are refreshed.

A dropdown list. The list, when active, is drawn below the control. The height of the control is determined by the height of the font in use. The height of the list is determined by the number of entries in it and the font in use. Scrolling is not supported. The dropdown should be placed high enough on the screen to ensure that the list can be displayed

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Mandatory keyword only argument:

  • elements A list or tuple of strings to display. Must have at least one entry.

Optional keyword only arguments:

  • width=None Control width in pixels. By default this is calculated to accommodate all elements.
  • value=0 Index of currently selected list item.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • fontcolor=None Text color. Defaults to foreground color.
  • select_color=DARKBLUE Background color for selected item in list.
  • callback=dolittle Callback function which runs when a list entry is picked.
  • args=[] A list/tuple of arguments for above callback.

Methods:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value Argument val=None. If a provided arg is a valid index into the list, that entry becomes current and the callback is executed. Always returns the index of the currently active entry.
  • textvalue Argument text=None. If a string argument is provided and is in the control's list, that item becomes current. Normally returns the current string. If a provided arg did not match any list item, the control's state is not changed and None is returned.

If select is pressed when the Dropdown has focus, the list is displayed. The increase and decrease buttons move the list currency. If select is pressed after changing the currency the callback is triggered, the list is closed and the control will display the newly selected entry. If next or prev are pressed while the list is open, focus will move to the next widget. In this event the list will close and no selection change will be recognised: the control will show the element which was visible at the start and the callback will not run. Moving the focus is a means of cancelling any changes.

The callback's first argument is the dropdown instance followed by any args specified to the constructor. The currently selected item may be retrieved by means of the instance's value or textvalue methods.

Contents

14. DialogBox class

from gui.widgets.dialog import DialogBox


An active dialog box. Auto generated dialogs contain only pushbutton instances, but user created dialogs may contain any widget.

This implements a modal dialog box based on a horizontal row of pushbuttons. Any button press will close the dialog. The caller can determine which button was pressed. The size of the buttons and the width of the dialog box are calculated from the strings assigned to the buttons. This ensures that buttons are evenly spaced and identically sized. Typically used for simple queries such as "yes/no/cancel".

Constructor positional args:

  1. writer The Writer instance (defines font) to use.
  2. row=20 Location on screen.
  3. col=20

Mandatory keyword only arg:

  • elements A list or tuple of 2-tuples. Each defines the text and color of a pushbutton, e.g. (('Yes', RED), ('No', GREEN)).

Optional keyword only args:

  • label=None Text for an optional label displayed in the centre of the dialog box.
  • bgcolor=DARKGREEN Background color of window.
  • buttonwidth=25 Minimum width of buttons. In general button dimensions are calculated from the size of the strings in elements.
  • closebutton=True If set, a close button will be displayed at the top RH corner of the dialog box.
  • callback=dolittle
  • args=[]

Classmethod (inherited from Screen):

  • value(cls, val=None) The val arg can be any Python type.

The DialogBox is a Screen subclass. Pressing any button closes the dialog and sets the Screen value to the text of the button pressed or "Close" in the case of the close button. The outcome can therefore be tested by running Screen.value() or by implementing the callback. The latter receives the DialogBox instance as a first arg, followed by any args supplied to the constructor.

Note that dialog boxes can also be constructed manually, enabling more flexible designs. For example these might have widgets other than pushbuttons. The approach is to write a user subclass of Window. Example code may be found in gui/demos/screens.py.

Contents

15. Textbox widget

from gui.widgets.textbox import Textbox


Displays multiple lines of text in a field of fixed dimensions. Text may be clipped to the width of the control or may be word-wrapped. If the number of lines of text exceeds the height available, scrolling will occur. Access to text that has scrolled out of view may be achieved by calling a method. If the widget is instantiated as active scrolling may be performed using the increase and decrease buttons. The widget supports fixed and variable pitch fonts.

Constructor mandatory positional arguments:

  1. writer The Writer instance (font and screen) to use.
  2. row Location on screen.
  3. col
  4. width Width of the object in pixels.
  5. nlines Number of lines of text to display. The object's height is determined from the height of the font:
    height in pixels = nlines*font_height
    As per all widgets the border is drawn two pixels beyond the control's boundary.

Keyword only arguments:

  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • clip=True By default lines too long to display are right clipped. If False is passed, word-wrap is attempted. If the line contains no spaces it will be wrapped at the right edge of the window.
  • active=False If True scrolling may be performed via the increase and decrease buttons.

Methods:

  • append Args s, ntrim=None, line=None Append the string s to the display and scroll up as required to show it. By default only the number of lines which will fit on screen are retained. If an integer ntrim=N is passed, only the last N lines are retained; ntrim may be greater than can be shown in the control, hidden lines being accessed by scrolling.
    If an integer (typically 0) is passed in line the display will scroll to show that line.
  • scroll Arg n Number of lines to scroll. A negative number scrolls up. If scrolling would achieve nothing because there are no extra lines to display, nothing will happen. Returns True if scrolling occurred, otherwise False.
  • value No args. Returns the number of lines of text stored in the widget.
  • clear No args. Clears all lines from the widget and refreshes the display.
  • goto Arg line=None Fast scroll to a line. By default shows the end of the text. 0 shows the start.

Fast updates:
Rendering text to the screen is relatively slow. To send a large amount of text the fastest way is to perform a single append. Text may contain newline ('\n') characters as required. In that way rendering occurs once only.

ntrim__ If text is regularly appended to a Textbox its buffer grows, using RAM. The value of ntrim sets a limit to the number of lines which are retained, with the oldest (topmost) being discarded as required.

Contents

16. Meter widget

from gui.widgets.meter import Meter


The two styles of meter, both showing a value of 0.65. This passive widget provides a vertical linear meter display of values scaled between 0.0 and 1.0.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Keyword only args:

  • height=50 Height of meter.
  • width=10 Width.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=BLACK Background color of meter. If None the Writer background is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • ptcolor=None Color of meter pointer or bar. Default is foreground color.
  • divisions=5 No. of graduations to show.
  • label=None A text string will cause a Label to be drawn below the meter. An integer will create a Label of that width for later use.
  • style=Meter.LINE The pointer is a horizontal line. Meter.BAR causes a vertical bar to be displayed. Much easier to read on monochrome displays.
  • legends=None If a tuple of strings is passed, Label instances will be displayed to the right hand side of the meter, starting at the bottom. E.G. ('0.0', '0.5', '1.0')
  • value=0 Initial value.

Methods:

  1. value Args: n=None, color=None.
    • n should be a float in range 0 to 1.0. Causes the meter to be updated. Out of range values are constrained. If None is passed the meter is not updated.
    • color Updates the color of the bar or line if a value is also passed. None causes no change.
      Returns the current value.
  2. text Updates the label if present (otherwise throws a ValueError). Args:
    • text=None The text to display. If None displays last value.
    • invert=False If true, show inverse text.
    • fgcolor=None Foreground color: if None the Writer default is used.
    • bgcolor=None Background color, as per foreground.
    • bdcolor=None Border color. As per above except that if False is passed, no border is displayed. This clears a previously drawn border.

Legends

Depending on the font in use for legends additional space may be required above and below the Meter to display the top and bottom legends.

Contents

17. Slider and HorizSlider widgets

from gui.widgets.sliders import Slider, HorizSlider


Different styles of slider.

These emulate linear potentiometers in order to display or control floating point values. A description of the user interface in the active case may be found in Floating Point Widgets.

Vertical Slider and horizontal HorizSlider variants are available. These are constructed and used similarly. The short forms (v) or (h) are used below to identify these variants.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Optional keyword only arguments:

  • height Dimension of the bounding box. Default 100 pixels (v), 20 (h).
  • width Dimension of the bounding box. Default 20 pixels (v), 100 (h).
  • divisions=10 Number of graduations on the scale.
  • legends=None A tuple of strings to display near the slider. These will be distributed evenly along its length, starting at the bottom (v) or left (h).
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • fontcolor=None Text color. Defaults to foreground color.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • slotcolor=None Color for the slot: this is a thin rectangular region in the centre of the control along which the slider moves. Defaults to the background color.
  • prcolor=None If active, in precision mode the white focus border changes to yellow to for a visual indication. An alternative color can be provided. WHITE will defeat this change.
  • callback=dolittle Callback function which runs whenever the control's value changes. If the control is active it also runs on instantiation. This enables dynamic color changes. Default is a null function.
  • args=[] A list/tuple of arguments for above callback.
  • value=0.0 The initial value: slider will be at the bottom (v), left (h).
  • active=True Determines whether the control can accept user input.

Methods:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value=None Optional float argument. If supplied the slider moves to show the new value and the callback is triggered. The method constrains the range to 0.0 to 1.0. The method always returns the control's value.
  • color Mandatory arg color The control is rendered in the selected color. This supports dynamic color changes.

If instantiated as active, the floating point widget behaves as per section 1.12. When the widget has focus, increase and decrease buttons adjust the value. Brief presses cause small changes, longer presses cause accelerating change. A long press of select invokes high precision mode.

Callback

The callback receives an initial arg being the widget instance followed by any user supplied args. The callback can be a bound method, typically of a Screen subclass. The callback runs when the widget is instantiated and whenever the value changes. This enables dynamic color change. See gui/demos/active.py.

Legends

Depending on the font in use for legends additional space may be required around sliders to display all legends.

Contents

18. Scale widget

from gui.widgets.scale import Scale


This displays floating point data having a wide dynamic range, and optionally provides for user input of such values. It is modelled on old radios where a large scale scrolls past a small window having a fixed pointer. This enables a scale with (say) 200 graduations (ticks) to readily be visible on a small display, with sufficient resolution to enable the user to interpolate between ticks. Default settings enable estimation of a value to within about +-0.1%.

The Scale may be active or passive. A description of the user interface in the active case may be found in Floating Point Widgets.

The scale handles floats in range -1.0 <= V <= 1.0, however data values may be scaled to match any given range.

Legends for the scale are created dynamically as it scrolls past the window. The user may control this by means of a callback. Example code may be found in nano-gui which has a Scale whose value range is 88.0 to 108.0. A callback ensures that the display legends match the user variable. A further callback can enable the scale's color to change over its length or in response to other circumstances.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Optional keyword only arguments:

  • ticks=200 Number of "tick" divisions on scale. Must be divisible by 2.
  • value=0.0 Initial value.
  • height=0 Default is a minimum height based on the font height.
  • width=100
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=None Color of border, default fgcolor. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • prcolor=None If active, in precision mode the white focus border changes to yellow to for a visual indication. An alternative color can be provided. WHITE will defeat this change.
  • pointercolor=None Color of pointer. Defaults to .fgcolor.
  • fontcolor=None Color of legends. Default fgcolor.
  • legendcb=None Callback for populating scale legends (see below).
  • tickcb=None Callback for setting tick colors (see below).
  • callback=dolittle Callback function which runs when the user moves the scale or the value is changed programmatically. If the control is active it also runs on instantiation. Default is a null function.
  • args=[] A list/tuple of arguments for above callback.
  • active=False By default the widget is passive. By setting active=True the widget can acquire focus; its value can then be adjusted with the increase and decrease buttons.

Methods:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value=None Set or get the current value. Always returns the current value. A passed float is constrained to the range -1.0 <= V <= 1.0 and becomes the Scale's current value. The Scale is updated. Passing None enables reading the current value, but see note below on precision.

For example code see gui/demos/active.py.

Control algorithm

If instantiated as active, the floating point widget behaves as per section 1.12. When the widget has focus, increase and decrease buttons adjust the value. Brief presses cause small changes, longer presses cause accelerating change. A long press of select invokes high precision mode.

Callback

The callback receives an initial arg being the widget instance followed by any user supplied args. The callback can be a bound method, typically of a Screen subclass. The callback runs when the widget is instantiated and whenever the value changes. This enables dynamic color change.

Callback legendcb

The display window contains 20 ticks comprising two divisions; by default a division covers a range of 0.1. A division has a legend at the start and end whose text is defined by the legendcb callback. If no user callback is supplied, legends will be of the form 0.3, 0.4 etc. User code may override these to cope with cases where a user variable is mapped onto the control's range. The callback takes a single float arg which is the value of the tick (in range -1.0 <= v <= 1.0). It must return a text string. An example from ths nano-gui demo shows FM radio frequencies:

def legendcb(f):
    return '{:2.0f}'.format(88 + ((f + 1) / 2) * (108 - 88))

The above arithmetic aims to show the logic. It can (obviously) be simplified.

Callback tickcb

This callback enables the tick color to be changed dynamically. For example a scale might change from green to orange, then to red as it nears the extremes. The callback takes two args, being the value of the tick (in range -1.0 <= v <= 1.0) and the default color. It must return a color. This example is taken from the scale.py demo:

def tickcb(f, c):
    if f > 0.8:
        return RED
    if f < -0.8:
        return BLUE
    return c

Increasing the ticks value

This increases the precision of the display.

It does this by lengthening the scale while keeping the window the same size, with 20 ticks displayed. If the scale becomes 10x longer, the value diference between consecutive large ticks and legends is divided by 10. This means that the tickcb callback must return a string having an additional significant digit. If this is not done, consecutive legends will have the same value.

Precision

For performance reasons the control stores values as integers. This means that if you set value and subsequently retrieve it, there may be some loss of precision. Each visible division on the control represents 10 integer units.

Contents

19. ScaleLog widget

from gui.widgets.scale_log import ScaleLog


This displays floating point values with extremely wide dynamic range and optionally enables their input. The dynamic range is handled by means of a base 10 logarithmic scale. In other respects the concept is that of the Scale class.

The control is modelled on old radios where a large scale scrolls past a small window having a fixed pointer. The use of a logarithmic scale enables the value to span a range of multiple orders of magnitude.

The Scale may be active or passive. A description of the user interface in the active case may be found in Floating Point Widgets. Owing to the logarithmic nature of the widget, the changes discussed in that reference are multiplicative rather than additive. Thus a long press of increase will multiply the widget's value by a progressively larger factor, enabling many decades to be traversed quickly.

Legends for the scale are created dynamically as it scrolls past the window, with one legend for each decade. The user may control this by means of a callback, for example to display units, e.g. 10MHz. A further callback enables the scale's color to change over its length or in response to other circumstances.

The scale displays floats in range 1.0 <= V <= 10**decades where decades is a constructor arg. The user may readily scale these so that a control having a range of 1-10,000 controls a user value from 1e-6 to 1e-2 while displaying ticks labelled 1μs, 10μs, 100μs, 1ms and 10ms.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Keyword only arguments (all optional):

  • decades=5 Defines the control's maximum value (i.e. 10**decades).
  • value=1.0 Initial value for control. Will be constrained to 1.0 <= value <= 10**decades if outside this range.
  • height=0 Default is a minimum height based on the font height.
  • width=160
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=None Color of border, default fgcolor. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • prcolor=None If active, in precision mode the white focus border changes to yellow to for a visual indication. An alternative color can be provided. WHITE will defeat this change.
  • pointercolor=None Color of pointer. Defaults to .fgcolor.
  • fontcolor=None Color of legends. Default WHITE.
  • legendcb=None Callback for populating scale legends (see below).
  • tickcb=None Callback for setting tick colors (see below).
  • callback=dolittle Callback function which runs when the user moves the scale or the value is changed programmatically. If the control is active it also runs on instantiation. Default is a null function.
  • args=[] A list/tuple of arguments for above callback. The callback's arguments are the ScaleLog instance, followed by any user supplied args.
  • delta=0.01 This determines the smallest amount of change which can be achieved with a brief button press. See Control Algorithm below.
  • active=False Determines whether the widget accepts user input.

Methods:

  • value=None Set or get the current value. Always returns the current value. A passed float is constrained to the range 1.0 <= V <= 10**decades and becomes the control's current value. The ScaleLog is updated. Always returns the control's current value.
  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.

For example code see gui/demos/active.py.

Control algorithm

If instantiated as active, the floating point widget behaves as per section 1.12. When the widget has focus, increase and decrease buttons adjust the value. Brief presses cause small changes, longer presses cause accelerating change. A long press of select invokes high precision mode.

In normal mode, the amount of change caused by a brief button press is controlled by the constructor arg delta; the choice of this value represents a compromise between precision and usability.

Owing to the logarithmic nature of the control, a small positive change is defined by multiplication of the value by (1 + delta) and a negative change corresponds to division by (1 + delta). In precision mode delta is reduced by a factor of 10.

Callback

The callback receives an initial arg being the widget instance followed by any user supplied args. The callback can be a bound method, typically of a Screen subclass. The callback runs when the widget is instantiated and whenever the value changes. This enables dynamic color change.

Callback legendcb

The start of each decade is marked by a long "tick" with a user-definable text label. By default it will display a number corresponding to the value at that tick (of form 10**n where n is an integer), but this can be overridden to display values such as "10MHz". The following is a simple example from the scale_ctrl_test demo:

def legendcb(f):
    if f < 999:
        return '{:<1.0f}'.format(f)
    return '{:<1.0f}K'.format(f/1000)

Callback tickcb

This callback enables the tick color to be changed dynamically. For example a scale might change from green to orange, then to red as it nears the extremes. The callback takes two args, being the value of the tick (of form 10**n where n is an integer) and the default color. It must return a color. This example is taken from the scale_ctrl_test demo:

def tickcb(f, c):
    if f > 30000:
        return RED
    if f < 10:
        return BLUE
    return c
Contents

20. Dial widget

from gui.widgets.dial import Dial, Pointer

Image Image

A Dial is a passive widget. It presents a circular display capable of displaying an arbitrary number of vectors; each vector is represented by a Pointer instance. The format of the display may be chosen to resemble an analog clock or a compass. In the CLOCK case a pointer resembles a clock's hand extending from the centre towards the periphery. In the COMPASS case pointers are chevrons extending equally either side of the circle centre.

In both cases the length, angle and color of each Pointer may be changed dynamically. A Dial can include an optional Label at the bottom which may be used to display any required text.

In use, a Dial is instantiated. Then one or more Pointer objects are instantiated and assigned to it. The Pointer.value method enables the Dial to be updated affecting the length, angle and color of the Pointer. Pointer values are complex numbers.

Dial class

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Keyword only args:

  • height=100 Height and width of dial.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • ticks=4 No. of gradutions to show.
  • label=None A text string will cause a Label to be drawn below the meter. An integer will create a Label of that width for later use.
  • style=Dial.CLOCK Pointers are drawn from the centre of the circle as per the hands of a clock. Dial.COMPASS causes pointers to be drawn as arrows centred on the control's centre. Arrow tail chevrons are suppressed for very short pointers.
  • pip=None Draws a central dot. A color may be passed, otherwise the foreground color will be used. If False is passed, no pip will be drawn. The pip is suppressed if the shortest pointer would be hard to see.

Method:

  1. text Updates the label if present (otherwise throws a ValueError). Args:
    • text=None The text to display. If None displays last value.
    • invert=False If true, show inverse text.
    • fgcolor=None Foreground color: if None the Writer default is used.
    • bgcolor=None Background color, as per foreground.
    • bdcolor=None Border color. As per above except that if False is passed, no border is displayed. This clears a previously drawn border.

When a Pointer is instantiated it is assigned to the Dial by the Pointer constructor.

Pointer class

Constructor arg:

  1. dial The Dial instance on which it is to be dsplayed.

Methods:

  1. value Args:
    • v=None The value is a complex number. A magnitude exceeding unity is reduced (preserving phase) to constrain the Pointer within the unit circle.
    • color=None By default the pointer is rendered in the foreground color of the parent Dial. Otherwise the passed color is used.
      Returns the current value.

Typical usage:

from hardware_setup import ssd  # Create a display instance
import uasyncio as asyncio
import cmath
from gui.core.ugui import Screen
from gui.core.writer import CWriter
from gui.core.colors import *

from gui.widgets.dial import Dial, Pointer
from gui.widgets.buttons import CloseButton
import gui.fonts.freesans20 as freesans20

async def run(dial):
    hrs = Pointer(dial)
    mins = Pointer(dial)
    hrs.value(0 + 0.7j, RED)
    mins.value(0 + 0.9j, YELLOW)
    dm = cmath.exp(-1j * cmath.pi / 30)  # Rotate by 1 minute
    dh = cmath.exp(-1j * cmath.pi / 1800)  # Rotate hours by 1 minute
    # Twiddle the hands: see vtest.py for an actual clock
    while True:
        await asyncio.sleep_ms(200)
        mins.value(mins.value() * dm, RED)
        hrs.value(hrs.value() * dh, YELLOW)

class BaseScreen(Screen):

    def __init__(self):
        super().__init__()
        wri = CWriter(ssd, freesans20, GREEN, BLACK, verbose=False)
        dial = Dial(wri, 5, 5, ticks = 12, bdcolor=None)
        self.reg_task(run(dial))
        CloseButton(wri)

Screen.change(BaseScreen)
Contents

21. Knob widget

from gui.widgets.knob import Knob


Rightmost example has no border and 270° travel. Others have 360°.

This emulates a rotary control capable of being rotated through a predefined arc in order to display or set a floating point variable. A Knob may be active or passive. A description of the user interface in the active case may be found in Floating Point Widgets.

Constructor mandatory positional args:

  1. writer The Writer instance (defines font) to use.
  2. row Location on screen.
  3. col

Optional keyword only arguments:

  • height=70 Dimension of the square bounding box.
  • arc=TWOPI Movement available. Default 2*PI radians (360 degrees). May be reduced, e.g. to provide a 270° range of movement.
  • ticks=9 Number of graduations around the dial.
  • value=0.0 Initial value. By default the knob will be at its most counter-clockwise position.
  • fgcolor=None Color of foreground (the control itself). If None the Writer foreground default is used.
  • bgcolor=None Background color of object. If None the Writer background default is used.
  • color=None Fill color for the control knob. Default: no fill.
  • bdcolor=False Color of border. If False no border will be drawn. If a color is provided, a border line will be drawn around the control.
  • prcolor=None If active, in precision mode the white focus border changes to yellow to for a visual indication. An alternative color can be provided. WHITE will defeat this change.
  • callback=dolittle Callback function runs when the user moves the knob or the value is changed programmatically.
  • args=[] A list/tuple of arguments for above callback.
  • active=True Enable user input via the increase and decrease buttons.

Methods:

  • greyed_out Optional Boolean argument val=None. If None returns the current 'greyed out' status of the control. Otherwise enables or disables it, showing it in its new state.
  • value Optional argument val. If set, adjusts the pointer to correspond to the new value. The move callback will run. The method constrains the range to 0.0 to 1.0. Always returns the control's value.

Callback

The callback receives an initial arg being the widget instance followed by any user supplied args. The callback can be a bound method, typically of a Screen subclass. The callback runs when the widget is instantiated and whenever the value changes. This enables dynamic color change.

Contents

22. Graph Plotting

from gui.widgets.graph import PolarGraph, PolarCurve, CartesianGraph, Curve, TSequence

Image Image

Image Image

Image Realtime time sequence simulation.

For example code see gui/demos/plot.py.

22.1 Concepts

Data for Cartesian graphs constitutes a sequence of x, y pairs, for polar graphs it is a sequence of complex z values. The module supports three common cases:

  1. The dataset to be plotted is complete at the outset.
  2. Arbitrary data arrives gradually and needs to be plotted as it arrives.
  3. One or more y values arrive gradually. The X axis represents time. This is a simplifying case of 2.

22.1.1 Graph classes

A user program first instantiates a graph object (PolarGraph or CartesianGraph). This creates an empty graph image upon which one or more curves may be plotted. Graphs are passive widgets so cannot accept user input.

22.1.2 Curve classes

The user program then instantiates one or more curves (Curve or PolarCurve) as appropriate to the graph. Curves may be assigned colors to distinguish them.

A curve is plotted by means of a user defined populate generator. This assigns points to the curve in the order in which they are to be plotted. The curve will be displayed on the graph as a sequence of straight line segments between successive points.

Where it is required to plot realtime data as it arrives, this is achieved via calls to the curve's point method. If a prior point exists it causes a line to be drawn connecting the point to the last one drawn.

22.1.3 Coordinates

PolarGraph and CartesianGraph objects are subclassed from Widget and are positioned accordingly by row and col with a 2-pixel outside border. The coordinate system within a graph conforms to normal mathematical conventions.

Scaling is provided on Cartesian curves enabling user defined ranges for x and y values. Points lying outside of the defined range will produce lines which are clipped at the graph boundary.

Points on polar curves are defined as Python complex types and should lie within the unit circle. Points which are out of range may be plotted beyond the unit circle but will be clipped to the rectangular graph boundary.

Contents

22.2 Graph classes

22.2.1 Class CartesianGraph

Constructor.
Mandatory positional arguments:

  1. writer A CWriter instance.
  2. row Position of the graph in screen coordinates.
  3. col

Keyword only arguments (all optional):

  • height=90 Dimension of the bounding box.
  • width=110 Dimension of the bounding box.
  • fgcolor=None Color of the axis lines. Defaults to Writer foreground color.
  • bgcolor=None Background color of graph. Defaults to Writer background.
  • bdcolor=None Border color. If False no border is displayed. If None a border is shown in the foreground color. If a color is passed, it is used.
  • gridcolor=None Color of grid. Default: Writer foreground color.
  • xdivs=10 Number of divisions (grid lines) on x axis.
  • ydivs=10 Number of divisions on y axis.
  • xorigin=5 Location of origin in terms of grid divisions.
  • yorigin=5 As xorigin. The default of 5, 5 with 10 grid lines on each axis puts the origin at the centre of the graph. Settings of 0, 0 would be used to plot positive values only.

Method:

  • show No args. Redraws the empty graph. Used when plotting time sequences.

22.2.2 Class PolarGraph

Constructor.
Mandatory positional arguments:

  1. writer A CWriter instance.
  2. row Position of the graph in screen coordinates.
  3. col

Keyword only arguments (all optional):

  • height=90 Dimension of the square bounding box.
  • fgcolor=None Color of the axis lines. Defaults to Writer foreground color.
  • bgcolor=None Background color of graph. Defaults to Writer background.
  • bdcolor=None Border color. If False no border is displayed. If None a border is shown in the Writer foreground color. If a color is passed, it is used.
  • gridcolor=None Color of grid. Default: Writer foreground color.
  • adivs=3 Number of angle divisions per quadrant.
  • rdivs=4 Number radius divisions.

Method:

  • show No args. Redraws the empty graph.
Contents

22.3 Curve classes

22.3.1 Class Curve

The Cartesian curve constructor takes the following positional arguments:

Mandatory arguments:

  1. graph The CartesianGraph instance.
  2. color If None is passed, the graph foreground color is used.

Optional arguments:
3. populate=None A generator to populate the curve. See below.
4. origin=(0,0) 2-tuple containing x and y values for the origin. Provides for an optional shift of the data's origin.
5. excursion=(1,1) 2-tuple containing scaling values for x and y.

Methods:

  • point Arguments x, y. Defaults None. Adds a point to the curve. If a prior point exists a line will be drawn between it and the current point. If a point is out of range or if either arg is None no line will be drawn. Passing no args enables discontinuous curves to be plotted. This method is normally used for real time plotting.

The populate generator may take zero or more positional arguments. It should repeatedly yield x, y values before returning. Where a curve is discontinuous None, None may be yielded: this causes the line to stop. It is resumed when the next valid x, y pair is yielded.

If populate is not provided the curve may be plotted by successive calls to the point method. This may be of use where data points are acquired in real time, and realtime plotting is required. See class RTRect in gui/demos/plot.py.

Scaling

By default, with symmetrical axes, x and y values are assumed to lie between -1 and +1.

To plot x values from 1000 to 4000 we would set the origin x value to 1000 and the excursion x value to 3000. The excursion values scale the plotted values to fit the corresponding axis.

22.3.2 Class PolarCurve

The constructor takes the following positional arguments:

Mandatory arguments:

  1. graph The PolarGraph instance.
  2. color

Optional arguments:
3. populate=None A generator to populate the curve. See below.

Methods:

  • point Argument z=None. Normally a complex. Adds a point to the curve. If a prior point exists a line will be drawn between it and the current point. If the arg is None no line will be drawn. Passing no args enables discontinuous curves to be plotted. Lines are clipped at the square region bounded by (-1, -1) to (+1, +1).

The populate generator may take zero or more positional arguments. It should yield a complex z value for each point before returning. Where a curve is discontinuous a value of None may be yielded: this causes plotting to stop. It is resumed when the next valid z point is yielded.

If populate is not provided the curve may be plotted by successive calls to the point method. This may be of use where data points are acquired in real time, and realtime plotting is required. See class RTPolar in gui/demos/plot.py.

Scaling

Complex points should lie within the unit circle to be drawn within the grid.

Contents

22.4 Class TSequence

A common task is the acquisition and plotting of real time data against time, such as hourly temperature and air pressure readings. This class facilitates this. Time is on the x-axis with the most recent data on the right. Older points are plotted to the left until they reach the left hand edge when they are discarded. This is akin to old fashioned pen plotters where the pen was at the rightmost edge (corresponding to time now) with old values scrolling to the left with the time axis in the conventional direction.

The user instantiates a graph with the X origin at the right hand side and then instantiates one or more TSequence objects. As each set of data arrives it is appended to its TSequence using the add method. See the example below.

The constructor takes the following args:

Mandatory arguments:

  1. graph The CartesianGraph instance.
  2. color
  3. size Integer. The number of time samples to be plotted. See below.

Optional arguments:
4. yorigin=0 These args provide scaling of Y axis values as per the Curve class. 5 yexc=1

Method:

  1. add Arg v the value to be plotted. This should lie between -1 and +1 unless scaling is applied.

Note that there is little point in setting the size argument to a value greater than the number of X-axis pixels on the graph. It will work but RAM and execution time will be wasted: the constructor instantiates an array of floats of this size.

Each time a data set arrives the graph should be cleared and a data value is added to each TSequence instance. The following (slightly simplified) is taken from gui/demos/plot.py and simulates the slow arrival of sinusoidal values.

class TSeq(Screen):
    def __init__(self):
        super().__init__()
        self.g = CartesianGraph(wri, 2, 2, xorigin = 10, fgcolor=GREEN,
                                gridcolor=LIGHTGREEN, bdcolor=False)

    def after_open(self):  # After graph has been drawn
        self.reg_task(self.run(self.g), True)  # Cancel on screen change

    async def run(self, g):
        await asyncio.sleep_ms(0)
        tsy = TSequence(g, YELLOW, 50)
        tsr = TSequence(g, RED, 50)
        t = 0
        while True:
            g.show()  # Redraw the empty graph
            tsy.add(0.9*math.sin(t/10))
            tsr.add(0.4*math.cos(t/10))  # Plot the new curves
            await asyncio.sleep_ms(400)
            t += 1
Contents

Appendix 1 Application design

Tab order and button layout

The "tab order" of widgets on a Screen is the order with which they acquire focus with successive presses of the Next button. It is determined by the order in which they are instantiated. Tab order is important for usability but instantiating in the best order can conflict with program logic. This happens if a widget's callback refers to others not yet instantiated. See demos dropdown.py and linked_sliders.py for one solution.

The obvious layout for the physical buttons is as per a joystick:

Increase
Prev Select Next
Decrease

This works well with many screen layouts, if the tab order is considered in the layout of the screen. It works well with most widgets including vertical ones such as the Slider. With horizontal widgets such as Scale controls it can be counter intuitive because the horizontal layout does not match the position of the increase and decrease buttons. A different physical layout may be preferred.

The apparently obvious solution of designing a vertical Scale is tricky owing to the fact that the length of the internal text can be substantial and variable.

Screen layout

Widgets are positioned using absolute row and col coordinates. These may optionally be calculated using the metrics of other widgets. This facilitates relative positioning which can make layouts easier to modify. Such layouts can also automatically adapt to changes of fonts. To simplify this, all widgets have the following bound variables, which should be considered read-only:

  • height As specified. Does not include border.
  • width Ditto.
  • mrow Maximum absolute row occupied by the widget.
  • mcol Maximum absolute col occupied by the widget.

A further aid to metrics is the Writer method .stringlen(s). This takes a string as its arg and returns its length in pixels when rendered using that Writer instance's font.

The mrow and mcol values enable other widgets to be positioned relative to the one previously instantiated. In the cases of sliders, Dial and Meter widgets these take account of space ocupied by legends or labels.

The aclock.py and linked_sliders.py demos provide simple examples of this approach.

Use of graphics primitives

See demo primitives.py.

These notes are for those wishing to draw directly to the Screen instance. This is done by providing the user Screen class with an after_open() method which is written to issue the display driver calls.

The following code instantiates two classes:

import hardware_setup  # Create a display instance
from gui.core.ugui import Screen, ssd, display

The ssd object is an instance of the object defined in the display driver. It is a requirement that this is a subclass of framebuf.FrameBuffer. Hence ssd supports all the graphics primitives provided by FrameBuffer. These may be used to draw on the Screen.

The display object has methods with the same names and args as those of ssd. These support greying out. So you can write (for example)

display.rect(10, 10, 50, 50, RED)

To render in the correct colors it is wise ensure that greying out is disabled prior to calling display methods. This is done with

display.usegrey(False)

There is little point in issuing display.rect as it confers no advantage over ssd.rect. However the Display class adds methods not currently available in framebuf. These are listed below.

  • circle(self, x0, y0, r, color, width =1) Width specifies the line width.
  • fillcircle(self, x0, y0, r, color)
  • clip_rect(self, x, y, w, h, color) Rectangle with clipped corners.
  • fill_clip_rect(self, x, y, w, h, color)
  • print_left(self, writer, x, y, txt, fgcolor=None, bgcolor=None, invert=False)
  • print_centred(self, writer, x, y, text, fgcolor=None, bgcolor=None, invert=False)

Hopefully these are self explanatory. The Display methods use the framebuf convention of x, y coordinates rather than the row, col system used by micro-gui.

The primitives.py demo provides a simple example.

Contents
