ESP32 LoRa APRS Modem

amateur-radio aprs aprs-rx aprs-tracker aprsdroid aprsis codec2 esp32 esp32-ardunio esp32-library ham-radio iot kiss lora lora-gateway lora-server lorawan tnc tracker uhf

Go to file

sh123 e21b37fca9 Doc string		2021-11-22 12:26:55 +02:00
images	Added image	2021-11-20 11:06:46 +02:00
.gitignore	Uses SX1268 (#28 )	2021-11-10 08:59:34 +02:00
LICENSE	Create LICENSE	2020-06-24 15:14:52 +03:00
README.md	Update README.md	2021-11-20 16:35:02 +02:00
ax25_callsign.cpp	Small refactoring	2020-06-19 10:39:49 +03:00
ax25_callsign.h	Small refactoring	2021-02-02 11:22:38 +02:00
ax25_payload.cpp	Add configuration flag to allow text aprs messaging	2021-10-26 12:01:14 +03:00
ax25_payload.h	Add configuration flag to allow text aprs messaging	2021-10-26 12:01:14 +03:00
ble_serial.cpp	Add support for USB-OTG operation and improve logging (#25 )	2021-10-22 22:09:17 +03:00
ble_serial.h	Add support for USB-OTG operation and improve logging (#25 )	2021-10-22 22:09:17 +03:00
config.h	Doc string	2021-11-22 12:26:55 +02:00
esp32_loraprs.ino	Allow specifying some more lora parameters from config.h	2021-11-22 11:57:12 +02:00
kiss_processor.cpp	Logging	2021-10-26 16:36:16 +03:00
kiss_processor.h	Add ability to disable KISS and run in TNC2 mode	2021-10-26 13:09:43 +03:00
loraprs_config.h	Allow specifying some more lora parameters from config.h	2021-11-22 11:57:12 +02:00
loraprs_service.cpp	Log minimum decode level	2021-11-22 12:19:53 +02:00
loraprs_service.h	Allow specifying some more lora parameters from config.h	2021-11-22 11:57:12 +02:00

README.md

ESP32 LoRa APRS Modem

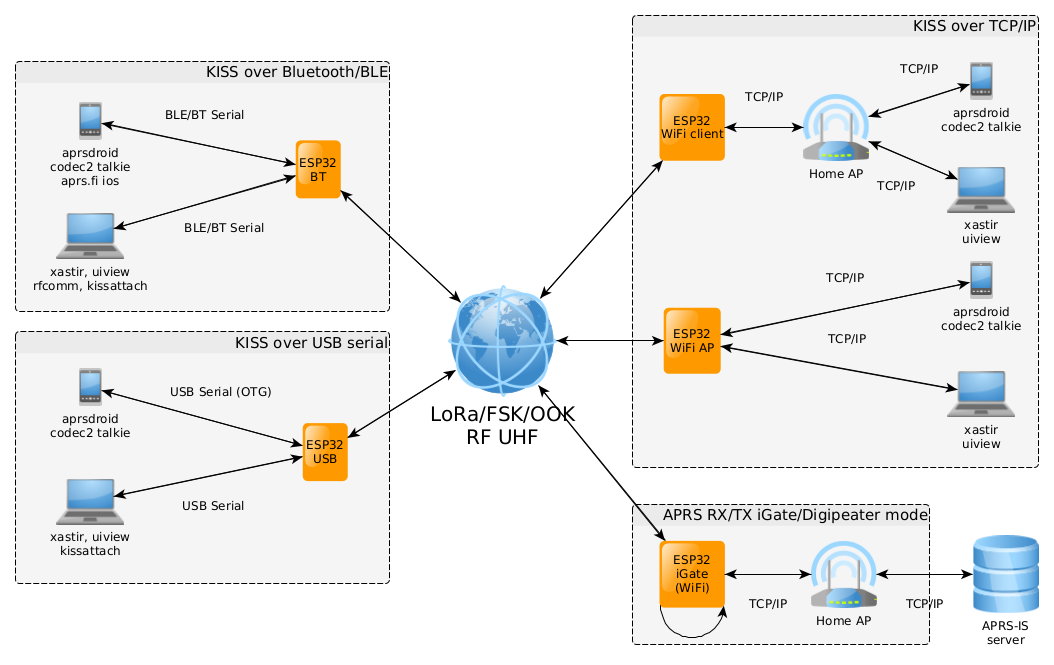

This project is amateur radio ESP32 based LoRa KISS Bluetooth/BLE/USB/TCPIP modem + LoRa APRS-IS RX/TX iGate server over WiFI + LoRa APRS digipeater + Codec2 DV modem (with Codec2 Talkie Android application).

⚠ To configure sketch modify default parameters in config.h file.

For project description, detailed setup and more information, please, visit our Wiki at https://github.com/sh123/esp32_loraprs/wiki
For discussions, visit https://github.com/sh123/esp32_loraprs/discussions

⚠ Project also supports APRSDroid TNC2 text APRS packet mode (configurable), which makes it interoperable with other LoRa APRS trackers without AX25 support.

Supported modules: SX126X (tested with RA-01) and SX127X (tested with E22-400M30S) with possibility to use other modules supported by RadioLib.

Dependencies

Install via libraries:

Arduino ESP32 library: https://github.com/espressif/arduino-esp32
LoRa library
- RadioLib library (⚠use github master version): https://github.com/jgromes/RadioLib
- or LoRa Arduino library: https://github.com/sandeepmistry/arduino-LoRa
Arduino Timer library: https://github.com/contrem/arduino-timer
CircularBuffer library: https://github.com/rlogiacco/CircularBuffer
DebugLog library: https://github.com/hideakitai/DebugLog
